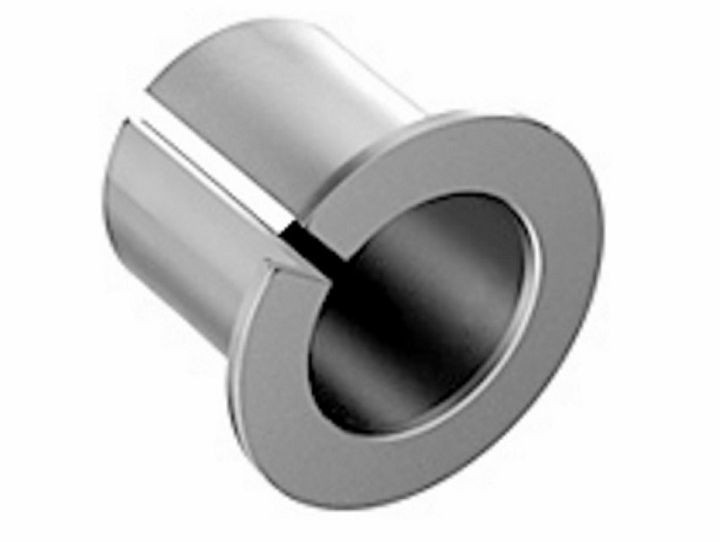

DUF Series
Model Size (mm) Assemble Tolerance Proposal
Inner dia. (d) Outer dia. (D) Outer dia. (D1) Width(L) Apeture Axis
DUF0605 6 8 12 5 H7 +0.015/0 6 -0.025/-0.037
DUF0606 6 8 12 6 H7 +0.015/0 6 -0.025/-0.037
DUF0607 6 8 12 7 H7 +0.015/0 6 -0.025/-0.037
DUF0806 8 10 15 6 H7 +0.015/0 8 -0.025/-0.040
DUF0807 8 10 15 7 H7 +0.015/0 8 -0.025/-0.040
DUF0808 8 10 15 8 H7 +0.015/0 8 -0.025/-0.040
DUF0809 8 10 15 9 H7 +0.015/0 8 -0.025/-0.040
DUF0810 8 10 15 10 H7 +0.015/0 8 -0.025/-0.040
DUF1007 10 12 18 7 H7 +0.018/0 10 -0.025/-0.040
DUF1008 10 12 18 8 H7 +0.018/0 10 -0.025/-0.040
DUF1009 10 12 18 9 H7 +0.018/0 10 -0.025/-0.040
DUF1010 10 12 18 10 H7 +0.018/0 10 -0.025/-0.040
DUF1012 10 12 18 12 H7 +0.018/0 10 -0.025/-0.040
DUF1208 12 14 20 8 H7 +0.018/0 12 -0.025/-0.043
DUF1210 12 14 20 10 H7 +0.018/0 12 -0.025/-0.043
DUF1212 12 14 20 12 H7 +0.018/0 12 -0.025/-0.043
DUF1215 12 14 20 15 H7 +0.018/0 12 -0.025/-0.043
DUF1410 14 16 22 10 H7 +0.018/0 14 -0.025/-0.043
DUF1412 14 16 22 12 H7 +0.018/0 14 -0.025/-0.043
DUF1415 14 16 22 15 H7 +0.018/0 14 -0.025/-0.043
DUF1417 14 16 22 17 H7 +0.018/0 14 -0.025/-0.043
DUF1510 15 17 23 10 H7 +0.018/0 15 -0.025/-0.043
DUF1512 15 17 23 12 H7 +0.018/0 15 -0.025/-0.043
DUF1515 15 17 23 15 H7 +0.018/0 15 -0.025/-0.043
DUF1517 15 17 23 17 H7 +0.018/0 15 -0.025/-0.043
DUF1612 16 18 24 12 H7 +0.018/0 16 -0.025/-0.043
DUF1615 16 18 24 15 H7 +0.018/0 16 -0.025/-0.043
DUF1617 16 18 24 17 H7 +0.018/0 16 -0.025/-0.043
DUF1812 18 20 26 12 H7 +0.021/0 18 -0.025/-0.043
DUF1815 18 20 26 15 H7 +0.021/0 18 -0.025/-0.043
DUF1817 18 20 26 17 H7 +0.021/0 18 -0.025/-0.043
DUF1820 18 20 26 20 H7 +0.021/0 18 -0.025/-0.043
DUF2015 20 23 30 15 H7 +0.021/0 20 -0.025/-0.046
DUF2017 20 23 30 17 H7 +0.021/0 20 -0.025/-0.046
DUF2020 20 23 30 20 H7 +0.021/0 20 -0.025/-0.046
DUF2025 20 23 30 25 H7 +0.021/0 20 -0.025/-0.046
DUF2215 22 25 32 15 H7 +0.021/0 22 -0.025/-0.046
DUF2217 22 25 32 17 H7 +0.021/0 22 -0.025/-0.046
DUF2220 22 25 32 20 H7 +0.021/0 22 -0.025/-0.046
DUF2225 22 25 32 25 H7 +0.021/0 22 -0.025/-0.046
DUF2515 25 28 35 15 H7 +0.021/0 22 -0.025/-0.046
DUF2517 25 28 35 17 H7 +0.021/0 22 -0.025/-0.046
DUF2520 25 28 35 20 H7 +0.021/0 22 -0.025/-0.046
DUF2525 25 28 35 25 H7 +0.021/0 22 -0.025/-0.046
DUF3015 30 34 42 15 34 H7 +0.025/0 30 -0.025/-0.046
DUF3017 30 34 42 17 34 H7 +0.025/0 30 -0.025/-0.046
DUF3020 30 34 42 20 34 H7 +0.025/0 30 -0.025/-0.046
DUF3025 30 34 42 25 34 H7 +0.025/0 30 -0.025/-0.046



Notice: Product specifications on the website are subject to change without notice.
